Product Details:
|
| Package: | Cartons | Oem No.: | ENDT-676 |
|---|---|---|---|
| DIA.: | 123.83mm | Thickness:: | 123.83mm 3.175+3.175+3.175+4.76 |
| No.cyl: | 1 | Type: | PISTON RING |
| Size: | Standard Size |

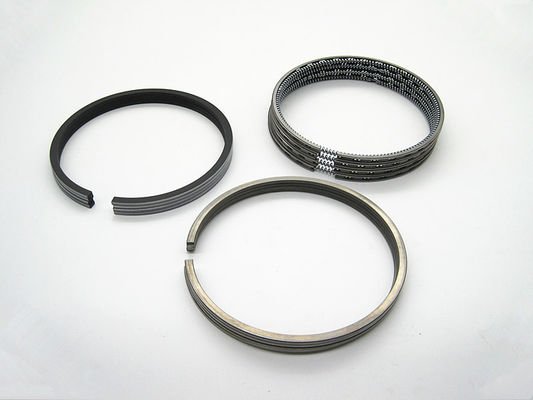

For Piston Ring ENDT-673 ENDT-676 123.83mm 1 No.Cyl Anti-Friction
| Model | For Piston Ring ENDT-673 ENDT-676 123.83mm 1 No.Cyl Anti-Friction |
| DIA. | 123.83mm |
| SIZE | 3.175+3.175+3.175+4.76 |
| Application | PISTON RING |
| Quality | ISO 9001:2008 ISO/TS16949 standard |
| Precision | 0.016mm |
| Service | OEM available |
Product Characteristics
Usage
The secondary ring (oil control ring) is also an important sealing component in the piston ring. It is located in the groove below the compression ring and is mainly used to control the oil film thickness and oil supply between the piston and cylinder wall.
Piston rings are an important sealing component widely used in internal combustion engines. It is located on the piston and forms a sealing gap with the cylinder wall. There are mainly types of piston rings, such as compression rings, secondary (oil control) rings, and explosion rings, each of which has a specific purpose and function
Product Description
The compression ring has high wear resistance and thermal stability, and can withstand high temperature, high pressure, and frequent reciprocating motion. The common types of compression rings are L-shaped and T-shaped sections to ensure good sealing effect.
The product principles of piston rings include sealing principle, lubrication principle, guiding principle, heat dissipation principle, and the function of preventing impurities from entering. These principles together ensure the efficient operation, reliability, and durability of the engine and compressor. By optimizing the design and manufacturing process of piston rings, the performance and lifespan of products can be improved.
The piston ring also has the function of guiding the piston to move on the cylinder wall, ensuring the stability and accuracy of the piston. Through close contact with the cylinder wall, the piston ring limits the axial and radial displacement of the piston, preventing it from deviating from its normal motion trajectory.
The piston rings also perform lubrication functions. During operation, a small lubricating oil film is formed between the piston ring and the cylinder wall to reduce friction and wear. This helps to reduce energy consumption, extend piston ring life, and improve the efficiency of the engine or compressor
The piston ring is used to seal the gap between the piston and the cylinder block to prevent leakage of lubricating oil and combustion chamber gas. High quality piston rings can provide excellent sealing performance, ensuring the normal operation of the engine or compressor, and minimizing energy loss and environmental pollution
The piston ring is generally composed of several rings, closely connected on both sides. Common structures include oil rings, oil control rings, and upper and lower spiral grooves. The piston rings with different structures undertake different functions, such as sealing the cylinder, conducting heat, lubricating, etc.
