Product Details:
|
| Package: | Cartons | Car Make: | Fiat |
|---|---|---|---|
| Oem No.: | XU10J2C | DIA.: | 86.0mm |
| Thickness:: | 86.0mm 1.5+1.75+3 | No.cyl: | 4 |
| Type: | PISTON RING | Size: | Standard Size |
| Highlight: | Wearproof Engine Piston Replacement,XU10J2C Engine Piston Replacement,86.0mm Engine Piston Replacement |
||

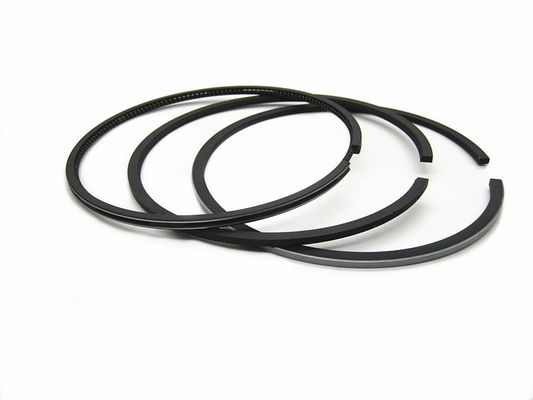

Wearproof Piston Ring Motor XU10J2C 2.0L For Fiat 86.0mm 1.5+1.75+3
| Model | Wearproof Piston Ring Motor XU10J2C 2.0L For Fiat 86.0mm 1.5+1.75+3 |
| DIA. | 86.0mm |
| SIZE | 1.5+1.75+3 |
| Application | PISTON RING |
| Quality | ISO 9001:2008 ISO/TS16949 standard |
| Precision | 0.013mm |
| Service | OEM available |
Product Characteristics
Product Technology
Forming processing often uses cold or hot extrusion processes to obtain the desired shape and size of the piston ring; Heat treatment can improve the hardness and wear resistance of piston rings; Precision machining improves the surface quality and accuracy of piston rings through grinding, polishing, and ultrasonic cleaning.
Forming processing often uses cold or hot extrusion processes to obtain the desired shape and size of the piston ring; Heat treatment can improve the hardness and wear resistance of piston rings; Precision machining improves the surface quality and accuracy of piston rings through grinding, polishing, and ultrasonic cleaning
The manufacturing of piston rings requires multiple processes, including cutting, forming, heat treatment, and finishing. Among them, cutting is carried out through equipment such as CNC lathes and grinders to achieve precise control of piston ring geometric parameters
Product Principles
The piston ring is one of the key components in the internal combustion engine, which is installed on the piston and fits with the cylinder liner. The main functions of piston rings include sealing the cylinder, reducing friction, conducting heat, and transmitting lubricating oil. The piston ring is usually made of materials with good thermal conductivity, and the heat conduction efficiency is improved through reasonable design and fit clearance to ensure the normal working temperature of the piston and cylinder.
The product principles of piston rings include sealing principle, lubrication principle, guiding principle, heat dissipation principle, and the function of preventing impurities from entering. These principles together ensure the efficient operation, reliability, and durability of the engine and compressor. By optimizing the design and manufacturing process of piston rings, the performance and lifespan of products can be improved.
The piston ring also has the function of guiding the piston to move on the cylinder wall, ensuring the stability and accuracy of the piston. Through close contact with the cylinder wall, the piston ring limits the axial and radial displacement of the piston, preventing it from deviating from its normal motion trajectory.
The piston rings also perform lubrication functions. During operation, a small lubricating oil film is formed between the piston ring and the cylinder wall to reduce friction and wear. This helps to reduce energy consumption, extend piston ring life, and improve the efficiency of the engine or compressor
The piston ring is used to seal the gap between the piston and the cylinder block to prevent leakage of lubricating oil and combustion chamber gas. High quality piston rings can provide excellent sealing performance, ensuring the normal operation of the engine or compressor, and minimizing energy loss and environmental pollution
The piston ring is generally composed of several rings, closely connected on both sides. Common structures include oil rings, oil control rings, and upper and lower spiral grooves. The piston rings with different structures undertake different functions, such as sealing the cylinder, conducting heat, lubricating, etc.
