Product Details:
|
Package: | Cartons | Car Make: | Honda |
---|---|---|---|
Oem No.: | 23040-02700 | DIA.: | 66.0mm |
Thickness:: | 66.0mm 1.2+1.2+2.5 | No.cyl: | 4 |
Type: | PISTON RING | Size: | Standard Size |
Highlight: | Heat Resistant Oil Control Rings,23040-02700 Oil Control Rings,23040-02700 |

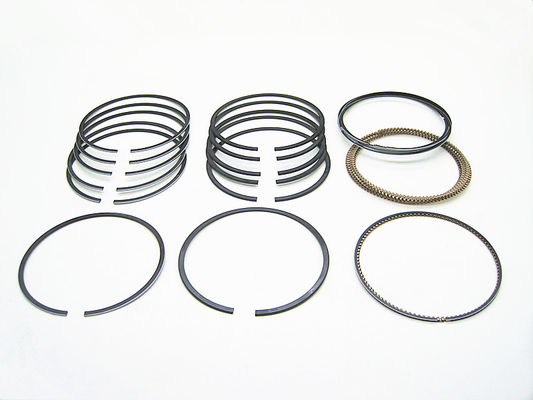

Heat Resistant Piston Ring For Hyundai 97ATOZ 23040-02700 66.0mm 1.2+1.2+2.5
Model | Heat Resistant Piston Ring For Hyundai 97ATOZ 23040-02700 66.0mm 1.2+1.2+2.5 |
DIA. | 66.0mm |
SIZE | 1.2+1.2+2.5 |
Application | PISTON RING |
Quality | ISO 9001:2008 ISO/TS16949 standard |
Precision | 0.008mm |
Service | OEM available |
Product Characteristics
Product Introduction
Piston rings are usually made of high-strength and wear-resistant materials to cope with high temperatures, high pressures, and high-speed environments. Commonly used materials include:
Tool steel: It has excellent mechanical strength and wear resistance, suitable for large and high-power engines.
Ductile iron: With high strength and wear resistance, it is widely used in small and medium-sized engines.
Note
Regular inspection and maintenance: Regularly check the wear and sealing performance of piston rings. If cracks, wear, or deformation are found in the piston ring, replace the piston ring in a timely manner. At the same time, pay attention to observing the working status of the engine or compressor, such as abnormal noise, increased fuel consumption, etc., and promptly inspect and repair any issues that may be related to the piston rings.
The piston ring also has the function of guiding the piston to move on the cylinder wall, ensuring the stability and accuracy of the piston. Through close contact with the cylinder wall, the piston ring limits the axial and radial displacement of the piston, preventing it from deviating from its normal motion trajector
Clean the piston groove:
Use tools such as a scraper to clean carbon deposits and dirt from the piston groove.
Gently grind the surface of the piston groove with sandpaper or a grinding tool to ensure a smooth surface.
Install new piston rings:
Before installation, ensure that the new piston ring matches the piston and carefully check its condition.
Use piston ring pliers to carefully place the piston ring into the piston groove, ensuring that the opening of the ring is correctly aligned.
Lubrication and assembly:
Apply a small layer of lubricating oil between the piston ring and piston groove to reduce friction and promote sealing effect.
Reinstall the piston onto the connecting rod and connect other engine components in the correct order.
The product principles of piston rings include sealing principle, lubrication principle, guiding principle, heat dissipation principle, and the function of preventing impurities from entering. These principles together ensure the efficient operation, reliability, and durability of the engine and compressor. By optimizing the design and manufacturing process of piston rings, the performance and lifespan of products can be improved.
The piston ring also has the function of guiding the piston to move on the cylinder wall, ensuring the stability and accuracy of the piston. Through close contact with the cylinder wall, the piston ring limits the axial and radial displacement of the piston, preventing it from deviating from its normal motion trajectory.
The piston rings also perform lubrication functions. During operation, a small lubricating oil film is formed between the piston ring and the cylinder wall to reduce friction and wear. This helps to reduce energy consumption, extend piston ring life, and improve the efficiency of the engine or compressor
The piston ring is used to seal the gap between the piston and the cylinder block to prevent leakage of lubricating oil and combustion chamber gas. High quality piston rings can provide excellent sealing performance, ensuring the normal operation of the engine or compressor, and minimizing energy loss and environmental pollution
The piston ring is generally composed of several rings, closely connected on both sides. Common structures include oil rings, oil control rings, and upper and lower spiral grooves. The piston rings with different structures undertake different functions, such as sealing the cylinder, conducting heat, lubricating, etc.
