Product Details:
|
| Package: | Cartons | Car Make: | AIR COMPRESSOR |
|---|---|---|---|
| Oem No.: | TD50 TD60 | DIA.: | 63.5mm |
| Thickness:: | 63.5mm 2.38+2.38+3.175+2.38+3.175 | No.cyl: | 2 |
| Type: | PISTON RING | Size: | Standard Size |

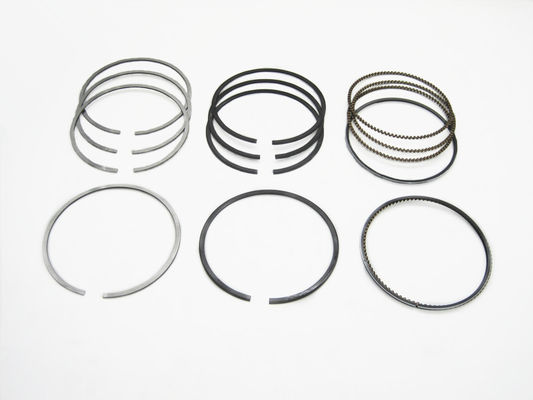

Westinghouse Piston Ring 63.5mm For AIR COMPRESSOR TD50 TD60 Anti-Friction
| Model | Westinghouse Piston Ring 63.5mm For AIR COMPRESSOR TD50 TD60 Anti-Friction |
| Specification | STD 0.25 0.50 0.75 |
| Brand | dem |
| Weight | 0.13 kg/PC |
| DIA. | 63.5mm |
| SIZE | 2.38+2.38+3.175+2.38+3.175 |
| Application | PISTON RING |
| Quality | ISO 9001:2008 ISO/TS16949 standard |
| Precision | 0.019mm |
| Service | OEM available |
Product Characteristics
Basis Information
Structure and type: The piston ring is usually made of metal material and has a circular structure. According to different functions and locations, it can be divided into the following types:
Compression ring: located at the top, responsible for sealing the combustion chamber and preventing compressed gas leakage.
Oil ring: located below, responsible for controlling the oil film around the piston and preventing lubricating oil from entering the combustion chamber.
Product Process
The manufacturing of piston rings began with mold design and manufacturing. A mold is a necessary tool for manufacturing piston rings, used to press metal materials into a specific shape of the ring. The design of the mold needs to consider the size, shape, and structure of the piston ring, as well as the wear resistance and durability of the mold.
The piston ring is generally composed of several rings, closely connected on both sides. Common structures include oil rings, oil control rings, and upper and lower spiral grooves. The piston rings with different structures undertake different functions, such as sealing the cylinder, conducting heat, lubricating, etc.
=
